AC Axial Fan Features:
1. Bearing System: Ball Bearing & Sleeve Bearing
2. Impeller: PBT With Fiber Class Filed Ul-94v0
3. Housing: Die Casting Aluminum & Surface Black Paint
4. Motor Type: AC Brushless
5. Insulation Class: E
6. Compressive Strength: 1500v
7. Storage Temperature: -20° - 70°
8. Working Temperature: -10° - 60°
Specification:
| MODEL NO. | VOLTAGE (V) | FREUENCY(HZ) | CURRENT (A) | POWER (W) | SPEED (RPM) | MAX AIR FLOW(CFM) | MAX Sq. （mm-H2O) | NOISE （DBA） |
| RA-AC20060M22 | 220/240 | 50 | 0.30 | 44 | 2400 | 360 | 22.86 | 56 |
| RA-AC20060M11 | 110/120 | 50 | 0.70 | 52 | 2400 | 360 | 22.86 | 56 |
Description:

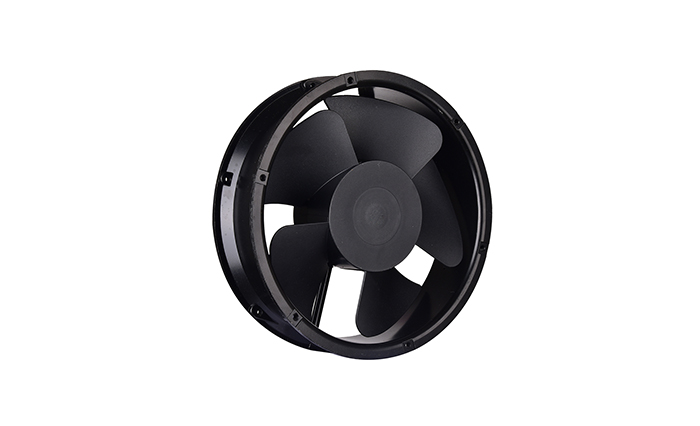

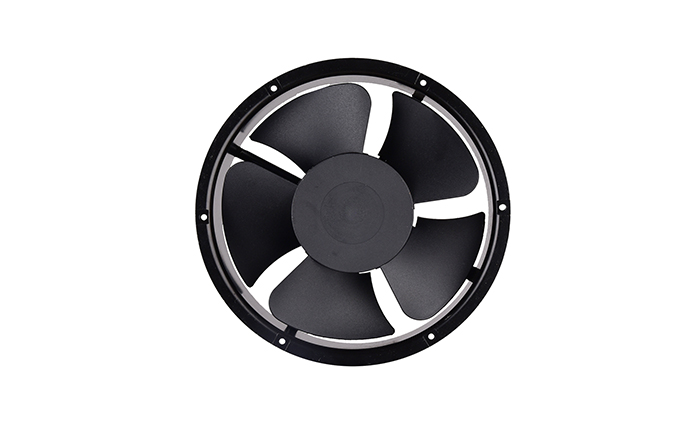

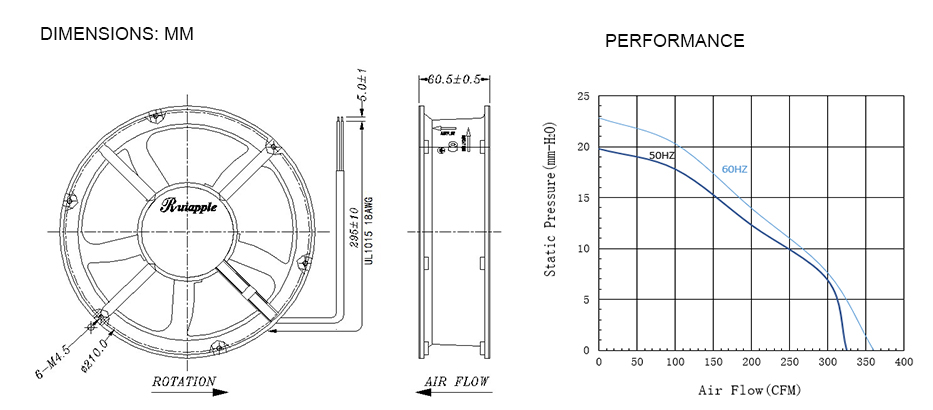

This Φ200x60mm ac cooling fan could be supplied by 240V, 230V, 220V, 120V, 115V, 110V voltage. From Ruiapple, a direct ac cooling fan factory in China.
Note: We can also adjust all the parameters according to your requirements.
