AC Axial Fan Features:
1. Bearing System: Ball Bearing & Sleeve Bearing
2. Impeller: PBT With Fiber Class Filed Ul-94v0
3. Housing: Die Casting Aluminum & Surface Black Paint
4. Motor Type: AC Brushless
5. Insulation Class: E
6. Compressive Strength: 1500v
7. Storage Temperature: -20° - 70°
8. Working Temperature: -10° - 60°
| MODEL NO. | VOLTAGE (V) | FREQUENCY (HZ) | CURRENT (A) | POWER (W) | SPEED (RPM) | MAX AIR FLOW (CFM) | MAX Sq. （mm-H2O) | NOISE （DBA） |
| RA-AC8038L22 | 220/240 | 50/60 | 0.05/0.04 | 6/3 | 1700/1900 | 17/16 | 3.05/2.54 | 21/23 |
| RA-AC8038L11 | 110/120 | 50/60 | 0.08/0.06 | 17/16 | 1700/1900 | 17/18 | 3.05/2.54 | 21/23 |
| RA-AC8038M22 | 220/240 | 50/60 | 0.08/0.06 | 10/9 | 2000/2300 | 21/23 | 3.56/3.30 | 24/27 |
| RA-AC8038M11 | 110//120 | 50/60 | 0.12/0.10 | 10/9 | 2000/2300 | 21/23 | 3.56/3.30 | 24/27 |
| RA-AC8038H22 | 220/110 | 50/60 | 0.10/0.08 | 13/12 | 2300/2700 | 26/30 | 4.31/6.09 | 30/35 |
| RA-AC8038H11 | 110/120 | 50/60 | 0.14/0.12 | 13/12 | 2300/2700 | 26/30 | 4.31/6.09 | 30/35 |
Description:

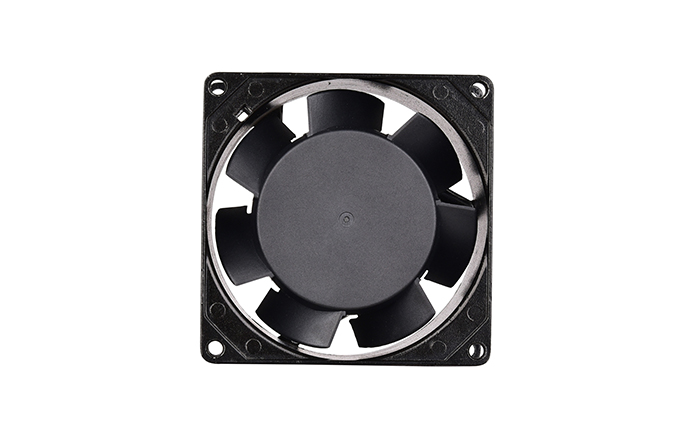

This 80mm 3 inch AC cooling fan can be supplied in high speed, medium speed, and low speed. Related voltage: 110V, 115V, 120V, 220V, 230V, 240V. From Ruiapple, a leading ac cooling fan manufacturer in China. Custom service is available.
Note: We can also adjust all the parameters according to your requirements.
