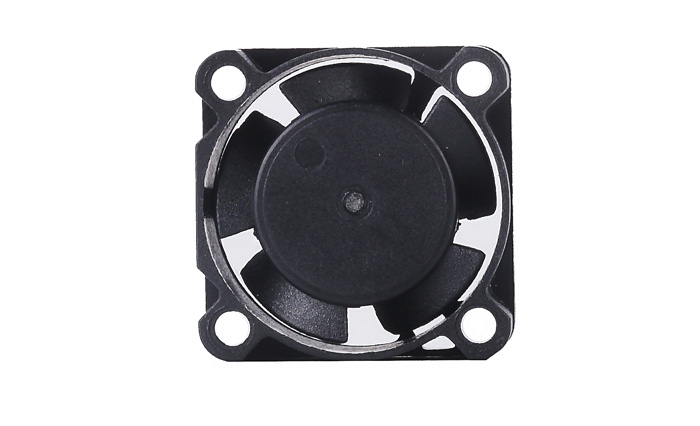

DC Axial Fans

DC Axial Fans

Ruiapple is a direct manufacturer of high quality, cost effective, RoHS, certified DC axial fan ( volts, 5V , 12V , 24V , 48V ) for OEM, industrial and commercial applications. Our brushless DC axial fans offer a wide range of cooling solutions. A reputed DC axial fan manufacturer in China - Ruiaple Company.

Model Dimensions
L*H*W (mm) 		Max Air Flow
(Cfm) 		Max Sp.
(mm-H2O) 		Noise level
(dBA) 		Input voltage
(VDC) 		Power
(w)
RA-DC2006 20x20x6mm 0.82---1.25 2.06---2.80 18---28 5---12 0.15---0.78
RA-DC2510 25x25x10mm 1.4---2.6 2.5---5.4 19---26 0.2-24 0.07---1.2
RA-DC3010 30x30x10mm 3.2---5.1 2.6---5.5 21---32 05---24 0.70---1.44
RA-DC4010 40x40x10mm 6.20---9.40 2.70---6.20 19---32 05---12 0.60---1.32
RA-DC4020 40x40x20mm 5.40---7.80 3.60---4.30 23---31 0.5---24 0.60---1.96
RA-DC4510 45x45x10mm 5.40---8.40 1.70---3.80 21---30 05-24 0.65---1.92
RA-DC5010 50x50x10mm 8.40---12.30 1.80---3.50 20---28 0.5-24 0.50---1.68
RA-DC5015 50x50x15mm 12.70---16.60 2.60---4.30 25---31 0.5---24 1.00---2.40
RA-DC6015 60x60x15mm 18.00-24.00 2.10---3.20 25---36 12---24 1.92---2.64
RA-DC6020 60x60x20mm 14.20---25.70 2.90---6.10 21---34 12---24 1.20---2.40
RA-DC6025 60x60x25mm 14.30---28.00 2.80---7.40 24---37 12---24 1.20---3.36
RA-DC7010 70x70x10mm 11.00---20.00 1.10---2.40 17---29 12---24 1.22---3.12
RA-DC7015 70x70x15mm 24.00---32.00 1.80---3.40 26---32 12---24 1.08---2.40
RA-DC7025 70x70x25mm 27.30---35.60 4.10---5.80 32---42 12---24 2.40---3.60
RA-DC8015 80x80x15mm 24.00---35.10 2.10---3.60 26---33 12---24 1.56---4.32
RA-DC8020 80x80x20mm 22.00---33.00 2.10---3.80 24---35 12---24 1.56---3.12
RA-DC8025 80x80x25mm 27.80---40.50 2.30---5.60 25---35 05---24 1.15---3.12
RA-DC8038 80x80x38mm 45.20---134.00 7.10---48.20 39---68 12---48 2.40---36.00
RA-DC9225 92x92x25mm 42.00---60.00 3.10---6.00 28---36 12---24 1.92---3.84
RA-DC9238 92x92x38mm 92.00---158.50 10.90---43.00 50---65 12---48 5.64---38.40
RA-DC12025 120x120x25mm 26.00---42.00 1.50---3.80 14---28 12---24 2.16---3.36
RA-DC12030 120x120x30mm 25.00---47.00 2.90---5.20 18---35 12---24 4.80---7.68
RA-DC12032 120x120x32mm 77.00-110.00 4.30---5.60 36---43 12.00---48.00 4.80---5.10
RA-DC12038 120x120x38mm 86.00---115.00 4.10---8.60 36---48 12---48 2.64---9.60
RA-DC12038A 120x120x38mm 43.00---74.00 4.30---6.50 26---42 12---48 3.84---11.52
RA-DC12038B 120x120x38mm 190.00---224.00 17.00---36.80 55---64 12---48 15.00---38.40
RA-DC14025 140x140x25mm 88.00---135.00 2.80---6.40 25---34 12---24 1.96---3.36
RA-DC17225 172x150x25mm 145.00---215.00 9.10---13.50 37---54 12---48 4.80---19.20
RA-DC17251 172x150x51mm 205.00---310.00 9.30---24.00 48---65 12---48 11.52---43.20
RA-DC17251A 172x150x51mm 182.00---335.00 10.50---30.70 52.80---65.80 12---48 8.04---38.40
Request A Quote
Product Name: DC Axial Fans
