DC Axial Fans

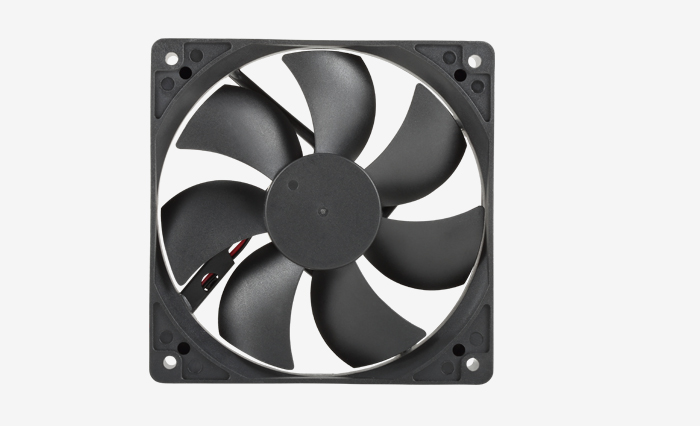

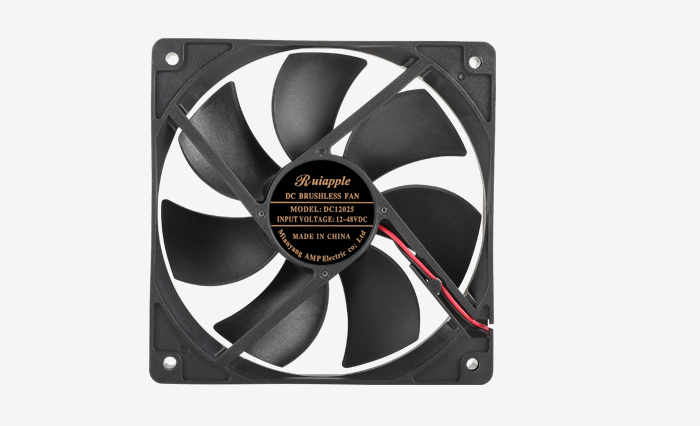

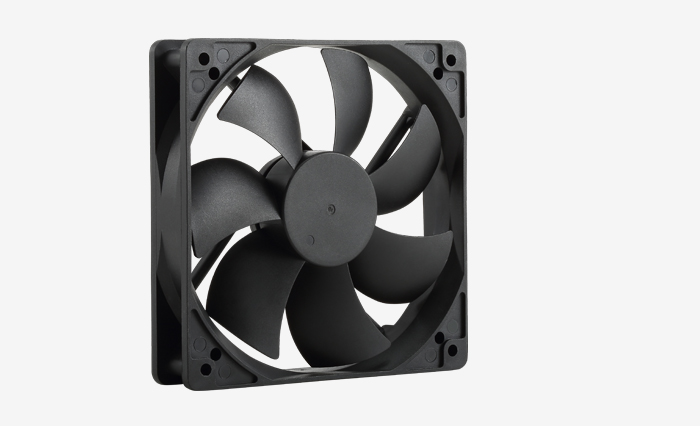

RA-DC12025

DC Axial Fans (120x120x25mm) Features:

1. Bearing System: Ball Bearing & Sleeve Bearing

2. Impeller: PBT With Fiber Class Filed Ul-94V0

3. Motor Type: High Performance DC Brushless

4. Connection: Wire & Terminal

                        Red (+) / Black(-) / Blue (PWM)

5. Out Put Signal: FG—Yellow   RD—White

6. Insulation Class: B

7. Compressive Strength: 500v

8. Storage Temperature: -20°---  70°

9. Working Temperature: -10°---  60°

Inquire Now
Product Details

RA-DC12025

RA-DC12025

RA-DC12025



MODEL NO.

VOLTAGE

(V)

CURRENT
(A)
POWER
(W)

SPEED

(RPM)

MAX AIR FLOW

(CFM)

MAX Sq.
(mm-H2O)
NOISE
(DBA)
RA-DC12025L12
24
0.07
0.06
0.84
 1.44
150050.801.3427.20
RA-DC12025M12
24
0.13
0.10
1.56
2.40
200057.912.4035.90
RA-DC12025H12
24
0.30
0.16
3.64
3.84
250084.023.3041.20


Description:

Ruiapple 12V 24VDC cool ing fan is 120mm 120x120x25 and features 7 blades, slim, super quiet and waterproof. Best choice for PC computer cooling. Click the "Related Product" links to view more similar 120mm cooling fans.


Related Product: 120x120x30mm Fan, 120x120x32 FanCooling Fan 120x120x38.

View More Products: DC Axial Fans


1.Other voltage also is realizable  2.Specifications subject to change without notice;  3.Design and provide products according to client’s requirement
