Design Features:
1. Bearing System: Ball Bearing & Sleeve Bearing
2. Impeller: Pbt With Fiber Class Filed Ul-94v0
3. Motor Type: DC Brushless
4. Connection: Wire & Terminal
Red (+) / Blk(-) / Blu（Pwm）
5. Out Put Signal: Fg—Yell Rd—Wite
6. Insulation Class: B
7. Compressive Strength: 500v
8. Storage Temperature: -20°--- 70°
9. Working Temperature: -10°--- 60°
| MODEL NO. | VOLTAGE(V) | CURRENT(A) | POWER(W) | SPEED(RPM) | MAX AIR FLOW(CFM) | MAX Sq.（mm-H2O) | NOISE（DBA） |
| RA-DC2006 L | 05 12 | 0.35 0.18 | 1.75 2.16 | 4500 | 0.82 | 2.06 | 18 |
| RA-DC2006 M | 05 12 | 0.68 0.33 | 3.40 3.96 | 5500 | 0.98 | 2.30 | 22 |
| RA-DC2006 H | 05 12 | 1.00 0.48 | 5.00 5.76 | 6500 | 1.25 | 2.80 | 28 |

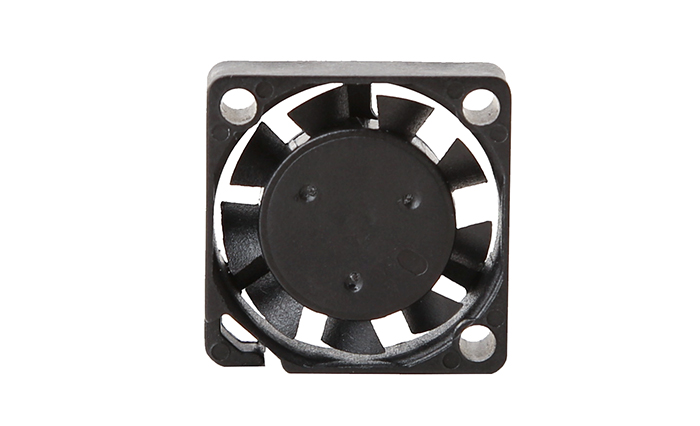

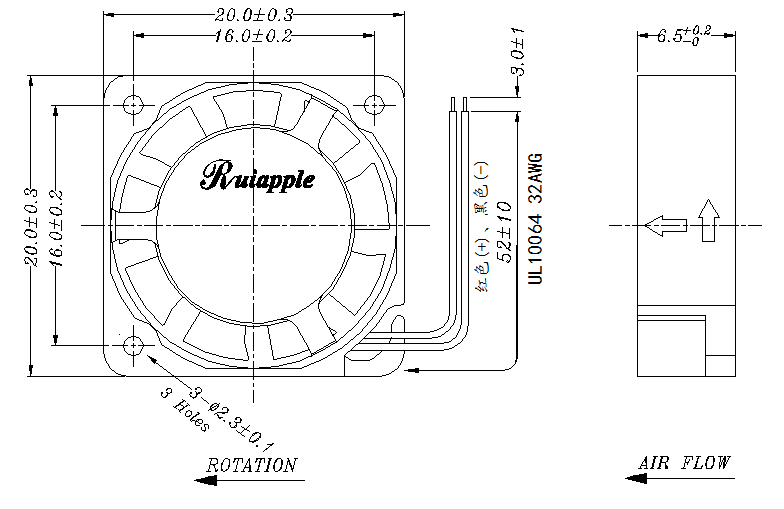

Ruiapple manufacture 20x20x6mm small DC axial fan for electronics and industrial use. Made in China. High performance and good price.
1.Other voltage also is realizable 2.Specifications subject to change without notice; 3.Design and provide products according to client’s requirement
