DC Axial Fans (40x40x10mm) Features:
1. Bearing System: Ball Bearing & Sleeve Bearing
2. Impeller: PBT With Fiber Class Filed Ul-94V0
3. Motor Type: High Performance DC Brushless
4. Connection: Wire & Terminal
Red (+) / Black(-) / Blue (PWM)
5. Out Put Signal: FG—Yellow RD—White
6. Insulation Class: B
7. Compressive Strength: 500v
8. Storage Temperature: -20°--- 70°
9. Working Temperature: -10°--- 60°
Specification:
MODEL NO. | VOLTAGE (VDC) | CURRENT (A) | POWER (W) | SPEED （RPM) | MAX AIR FLOW (CFM) | MAX Sq. (mm-H2O) | NOISE （dBA） |
RA-DC4010A L | 05 12 | 0.12 0.06 | 0.60 0.72 | 4000 | 4.70 | 2.10 | 15 |
RA-DC4010A M | 05 12 24 | 0.14 0.07 0.06 | 0.70 0.84 1.44 | 5000 | 5.80 | 3.60 | 20 |
RA-DC4010A H | 05 12 24 | 0.17 0.08 0.07 | 0.85 0.96 1.68 | 6000 | 7.60 | 4.50 | 26 |
Description:

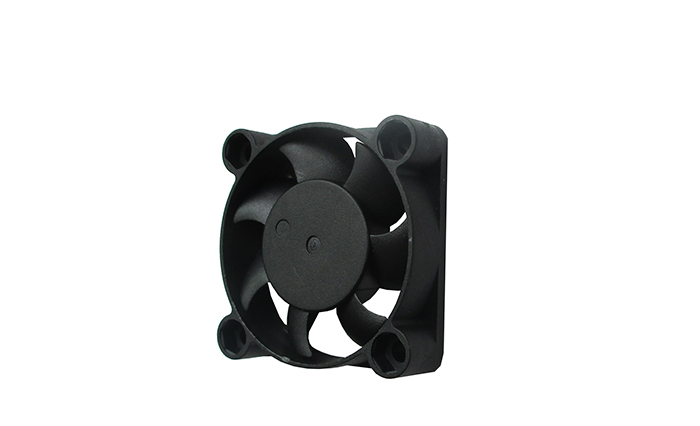

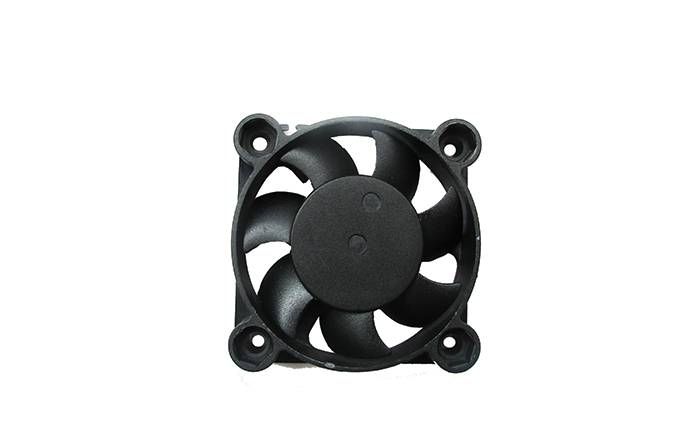

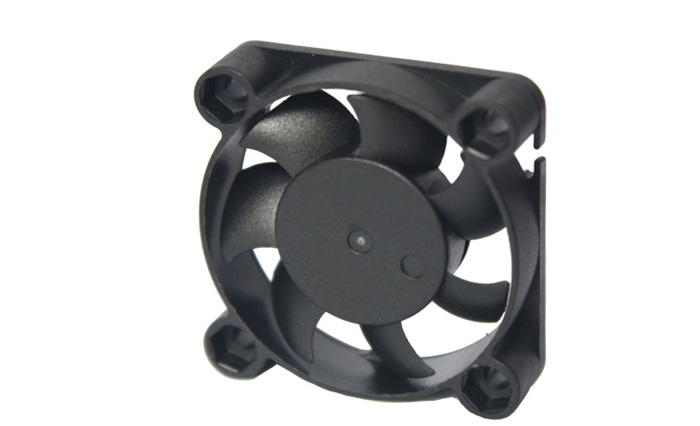

Ruiapple 40x40x10 mm DC brushless cooling fan features a 7pcs type blades with dc brushless motor coil. Environmental protection, safe, harmless. High quality raw materials, fine workmanship.
Related Product: DC Fan 40mmx40mmx10mm 9 Blades.
View More Products: DC Axial Fans.
We can also adjust all the parameters according to your requirements.
