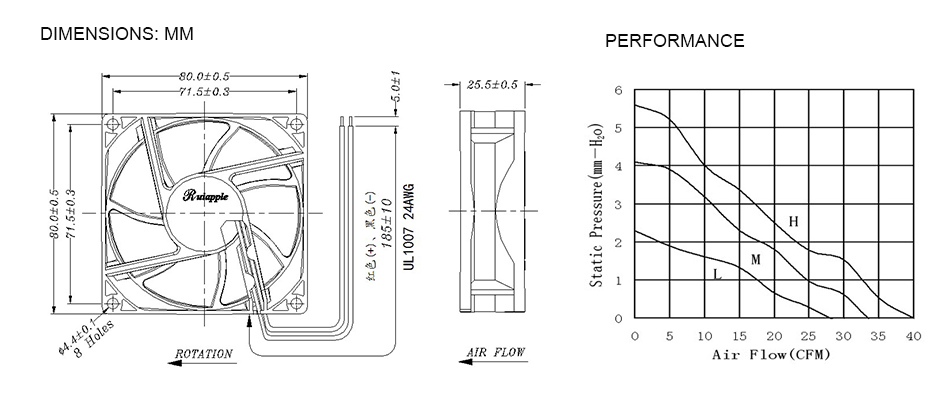

DC Axial Fans (80x80x25mm) Features:
1. Bearing System: Ball Bearing & Sleeve Bearing
2. Impeller: PBT With Fiber Class Filed Ul-94V0
3. Motor Type: High Performance DC Brushless
4. Connection: Wire & Terminal
Red (+) / Black(-) / Blue (PWM)
5. Out Put Signal: FG—Yellow RD—White
6. Insulation Class: B
7. Compressive Strength: 500v
8. Storage Temperature: -20°--- 70°
9. Working Temperature: -10°--- 60°
| MODEL NO. | VOLTAGE （V) | CURRENT (A) | POWER （W) | SPEED （RPM) | MAX AIR FLOW （CFM） | MAX Sq. （mm-H2O) | NOISE （DBA） |
| RA-DC8025L | 12 24 | 0.08 0.06 | 0.96 1.44 | 2200 | 20.92 | 1.97 | 24.00 |
| RA-DC8025M | 12 24 | 0.12 0.08 | 1.44 1.92 | 2600 | 26.89 | 2.66 | 30.00 |
| RA-DC8025H | 12 24 | 0.18 0.10 | 2.16 2.40 | 3200 | 31.80 | 3.97 | 37.00 |
Description:

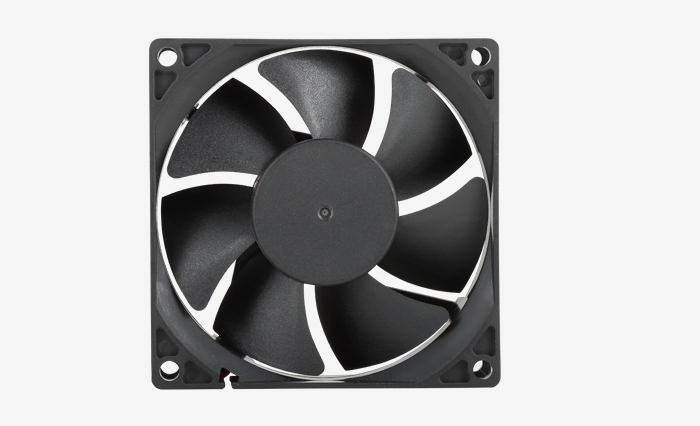

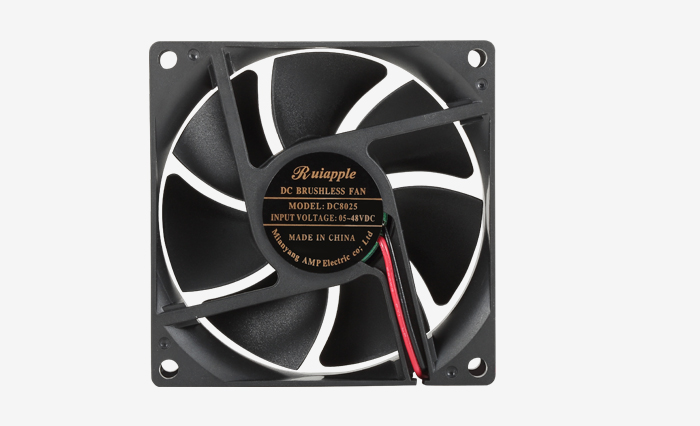

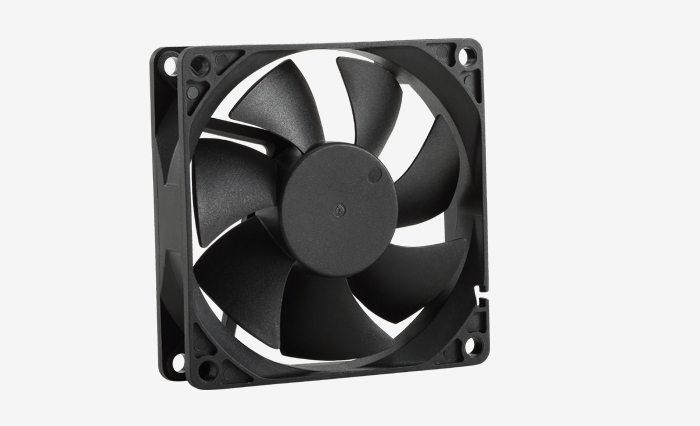

Top quality 80x80x25 80mm DC axial cooling fan for CPU is built to last a long time. Optional voltage 12V, 24V. Available in a low speed, medium speed, high speed version. With the blade master family of 120mm, 92mm, and 80mm fans, unique wave-form blades create increased pressure that exceeds competitor fans at the same airflow. Very low noise emission an is powerful enough even for very potent systems.
Related Product: 80x80x15mm DC Fan, 80x80x20mm DC Fan, 80x80x38mm DC Fan, 80x80x25mm AC Fan, 80x80x38mm AC Fan.
View More Products: DC Axial Fans.
1.Other voltage also is realizable 2.Specifications subject to change without notice; 3.Design and provide products according to client’s requirement
