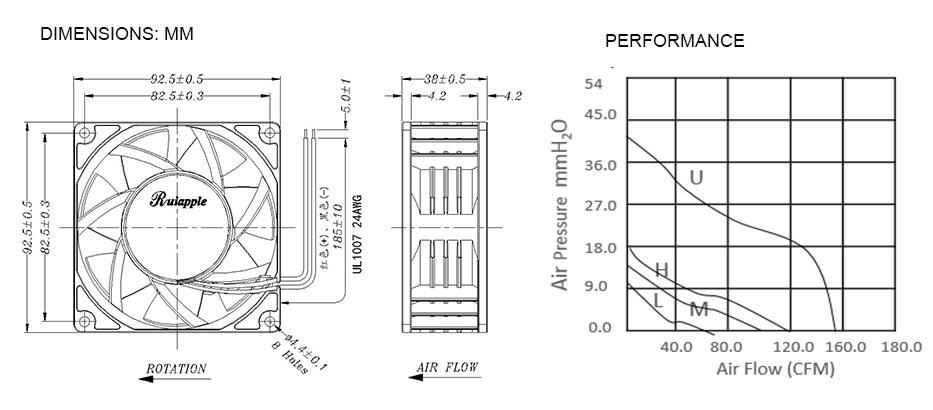

DC Axial Fans (92x92x38mm) Features:
1. Bearing System: Ball Bearing & Sleeve Bearing
2. Impeller: PBT With Fiber Class Filed Ul-94V0
3. Motor Type: High Performance DC Brushless
4. Connection: Wire & Terminal
Red (+) / Black(-) / Blue (PWM)
5. Out Put Signal: FG—Yellow RD—White
6. Insulation Class: B
7. Compressive Strength: 500v
8. Storage Temperature: -20°--- 70°
9. Working Temperature: -10°--- 60°
| MODEL NO. | VOLTAGE （V) | CURRENT (A) | POWER （W) | SPEED （RPM) | MAX AIR FLOW （CFM） | MAX Sq. （mm-H2O) | NOISE （DBA） |
| RA-DC9238L | 12 24 48 | 0.45 0.22 0.11 | 5.40 5.28 5.28 | 4500 | 76.99 | 13.02 | 48.60 |
| RA-DC9238M | 12 24 48 | 0.65 0.35 0.18 | 7.80 8.40 8.64 | 5500 | 88.97 | 19.27 | 54.00 |
| RA-DC9238H | 12 24 48 | 1.22 0.60 0.32 | 14.64 14.40 15.36 | 6500 | 108.02 | 26.32 | 59.00 |
| RA-DC9238U | 12 24 48 | 3.00 1.50 0.80 | 36.00 36.00 38.40 | 8000 | 158.50 | 43.00 | 65. |
Description:

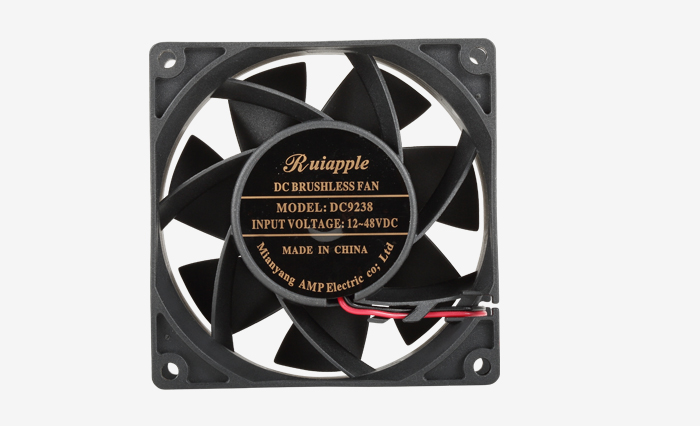

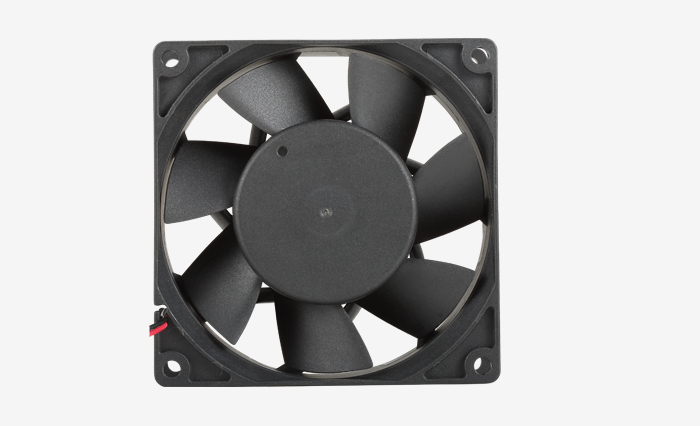

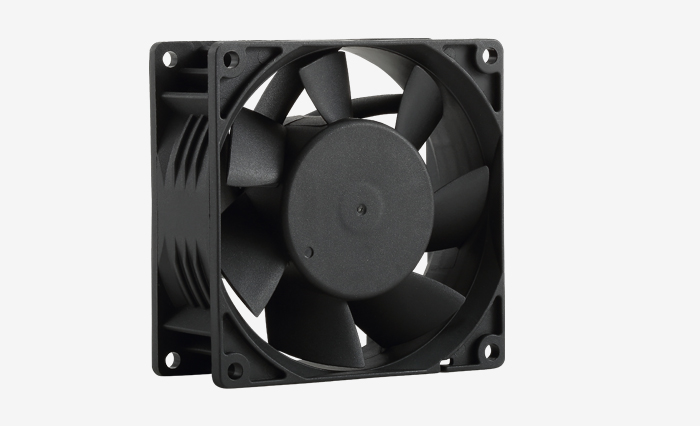

This 12V 92mm 92x92x38 high s peed static pressure DC axial fan is available with multiple features for improved fan operation and performance including Pulse Width Modulation (PWM). For standard applications requiring higher airflow in fan sizes up to 92mm. Optional voltage 12V, 24V, or 48V.
Related Product: 92x92x25mm Fan.
View More Products: DC Axial Fans.
1.Other voltage also is realizable 2.Specifications subject to change without notice; 3.Design and provide products according to client’s requirement
