Design Features:
1. Bearing System: Ball Bearing & Sleeve Bearing
2. Impeller: PBT With Fiber Class Filed Ul-94v0
3. Housing: Die Cast Aluminum
4. Motor Type: Dc Brushless
5. Connection: Wire & Terminal

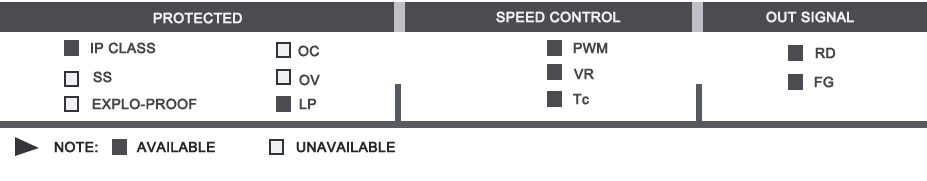

Red (+) / Blk(-) / Blu(PWM)
6. Out Put Signal: Fg—Yell Rd—Wite
7. Protection: Polar & Locked
8. IP Class: Max IP68 )
9. Insulation Class: B
10. Compressive Strength: 500v
11. Storage Temperature: -20°--- 70°
12. Working Temperature: -10°--- 60°
| MODEL NO. | VOLTAGE （V) | CURRENT (A) | POWER （W) | SPEED （RPM) | MAX AIR FLOW (CFM) | MAX PRESSURE （mm-H2O) | NOISE （dBA） |
| RA-DB5015L | 05 12 24 | 0.10 0.07 0.05 | 0.50 0.84 0.96 | 3000 | 2.50 | 6.10 | 25 |
| RA-DB5015M | 05 12 24 | 0.16 0.09 0.06 | 0.80 1.08 1.44 | 4000 | 3.50 | 10.00 | 32 |
| RA-DB5015H | 05 12 24 | 0.30 0.14 0.08 | 1.50 1.68 1.96 | 5000 | 4.40 | 18.00 | 38 |
Description:

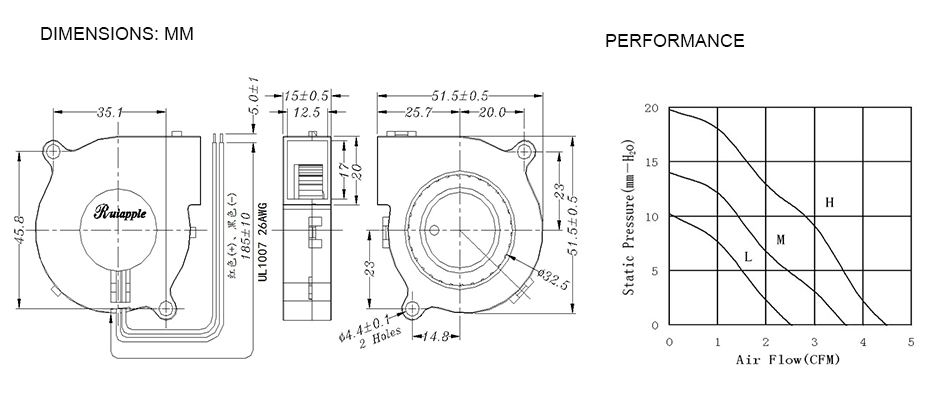

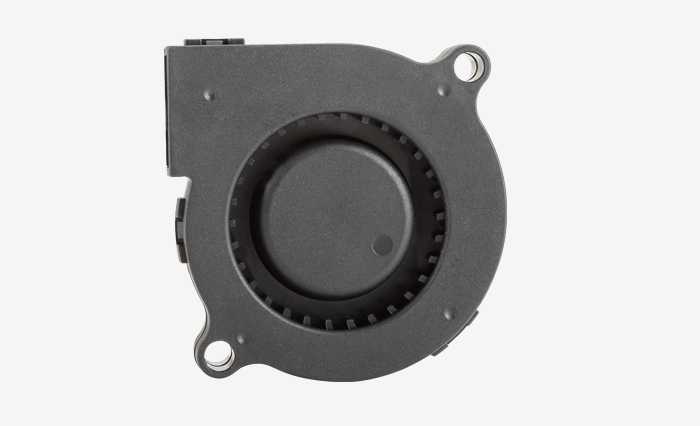

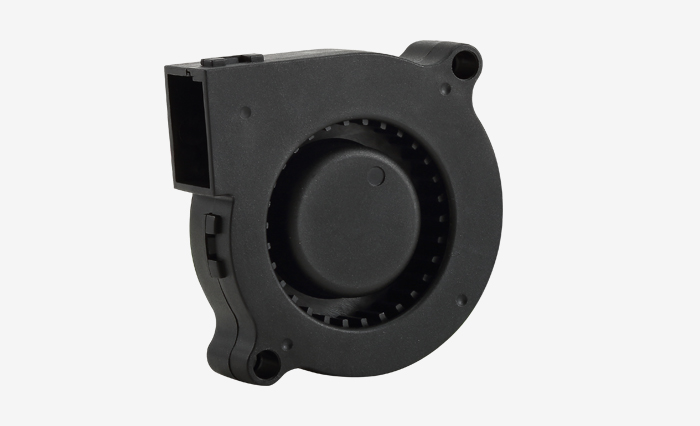

Ruiapple had experience in blower fan technology more than 17 years, especially in DC brushless blower fan. Voltage: DC 5V, 12V, 24V. Size: 50x50x15 mm. Excellent for cooling heatsinks on hot ends, prints, or other cooling needs. Bearing is high precision, long life and low noise. Made of high quality PBT, very sturdy and durable.
1.Other voltage also is realizable 2.Specifications subject to change without notice; 3.Design and provide products according to client’s requirement
