EC Axial Fans (120x120x38mm) Features:
1. Bearing System: Ball Bearing & Sleeve Bearing
2. Impeller: PBT With Fiber Class Filed Ul-94V0
3. Motor Type: ESM
4. Connection: Wire & Terminal
Red (+) / Black(-) / Blue (PWM)
5. Out Put Signal: FG—Yellow RD—White
6. Insulation Class: B
7. Compressive Strength: 500v
8. Storage Temperature: -20°--- 70°
9. Working Temperature: -10°--- 60°
| MODEL NO. | VOLTAGE （V) | CURRENT (A) | POWER （W) | SPEED （RPM) | MAX AIR FLOW (CFM) | MAX Sq. （mm-H2O) | NOISE （DBA） |
| RA-EC12038 | 110-240 | 0.045 | 5.00 | 3000 | 104.00 | 7.70 | 47 |
Description:

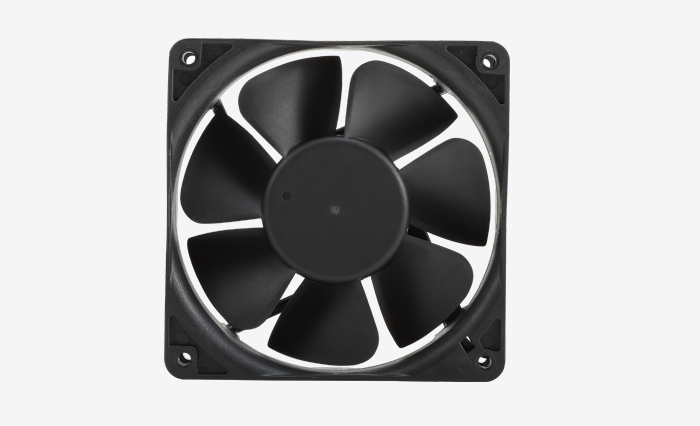

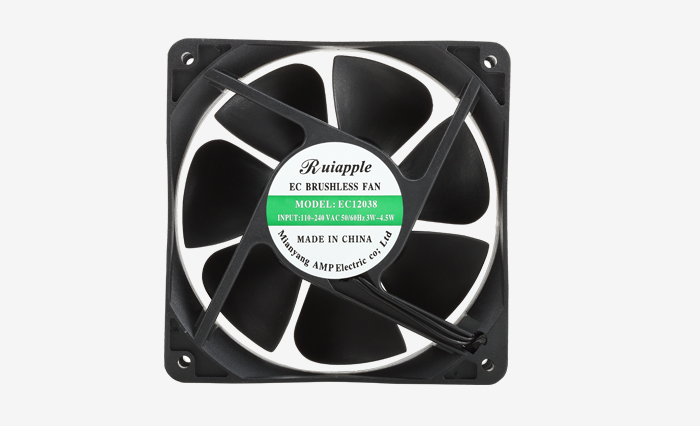

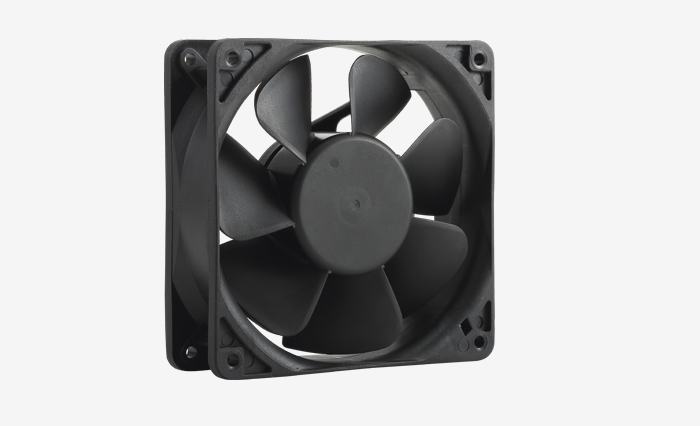

EC cooling fan 120x120x38 120mm with static pressure feature (thickness 38mm) in 120mm case fan. Up to 3000RPM.Silent user can obtain more airflow without sacrificing in noise level and power user can get extra airflow from the static pressure feature.
Related Product:
120mm Highest Speed Cooling Fan.
View More Products: EC Axial Fans.
1.Other voltage also is realizable 2.Specifications subject to change without notice; 3.Design and provide products according to client’s requirement
