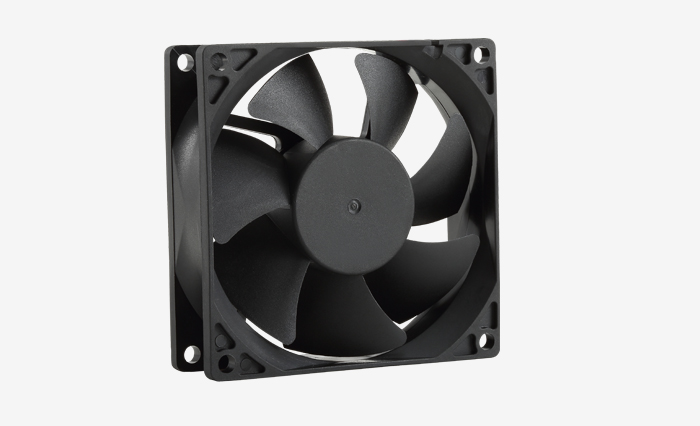

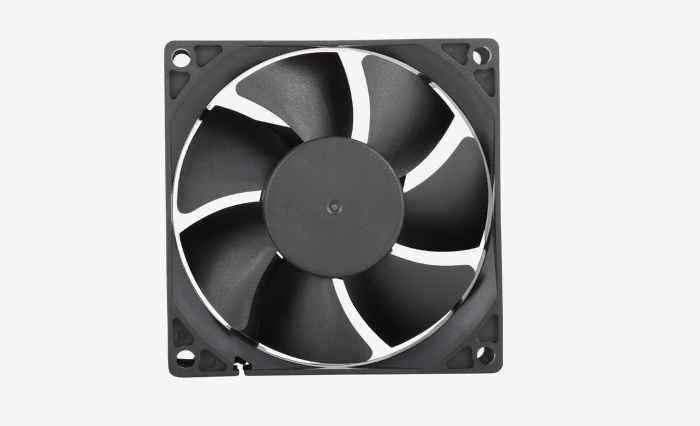

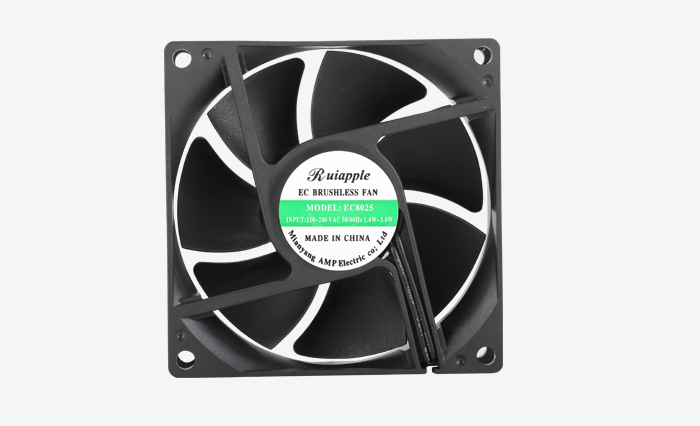

EC Axial Fans (80x80x25mm) Features:
1. Bearing System: Ball Bearing & Sleeve Bearing
2. Impeller: PBT With Fiber Class Filed Ul-94V0
3. Motor Type: ESM
4. Connection: Wire & Terminal
Red (+) / Black(-) / Blue (PWM)
5. Out Put Signal: FG—Yellow RD—White
6. Insulation Class: B
7. Compressive Strength: 500v
8. Storage Temperature: -20°--- 70°
9. Working Temperature: -10°--- 60°
| MODEL NO. | VOLTAGE （V) | CURRENT (A) | POWER （W) | SPEED （RPM) | MAX AIR FLOW （CFM） | MAX Sq. （mm-H2O) | NOISE （DBA） |
| RA-EC8025 | 110-240 | 0.042 | 2.00 | 3000 | 38.00 | 2.83 | 34.6 |
Related Product: 80x80x15mm DC Fan, 80x80x20mm DC Fan, 80x80x38mm DC Fan, 80x80x25mm AC Fan, 80x80x38mm AC Fan.
View More Products: EC Axial Fans.
1.Other voltage also is realizable 2.Specifications subject to change without notice; 3.Design and provide products according to client’s requirement
