EC Axial Fan Design Features:
1. Bearing System: Ball Bearing & Sleeve Bearing
2. Impeller: PBT With Fiber Class Filed Ul-94v0
3. Housing: Die Casting Aluminum & Surface Black Paint
4. Motor Type: ESM
5. Connection: Wire & Terminal
Red (+) / Black(-) / Blu(PWM)
6. Out Put Signal: FG—Yell RD—Wite

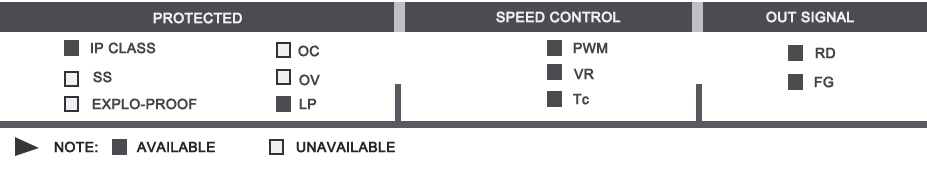

7. Protection: Polar & Locked
8. Insulation Class: E
9. Compressive Strength: 1500v
10. Storage Temperature: -20°--- 70°
11. Working Temperature: -10°--- 60°
| MODEL NO. | VOLTAGE (V) | FREUENCY (HZ) | CURRENT (A) | POWER (W) | SPEED (RPM) | MAX AIR FLOW (CFM) | MAX Sq. （mm-H2O) | NOISE （DBA） |
| RA-EC12038AH | 110-240 | 50/60 | 0.11 | 14.0 | 3000 | 148 | 8.93 | 56 |
Description:

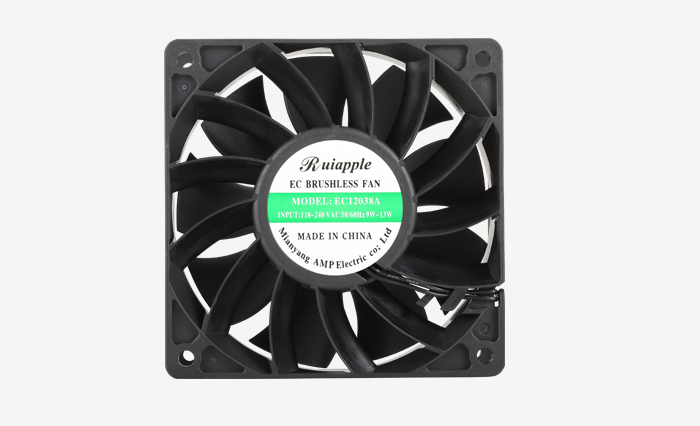

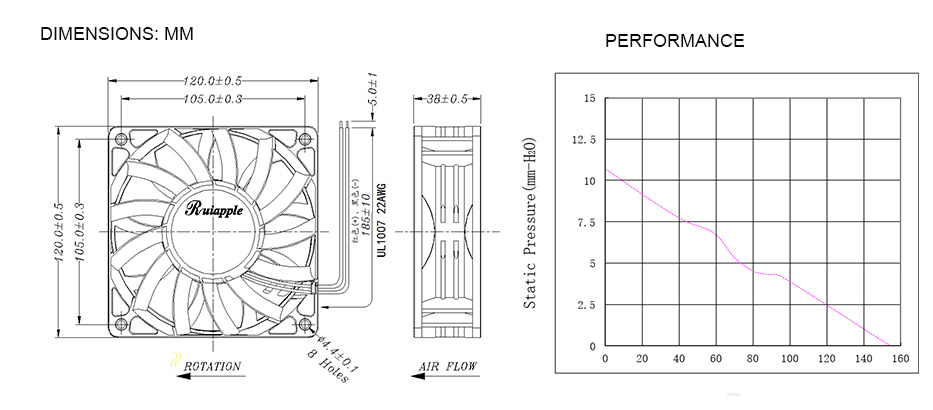

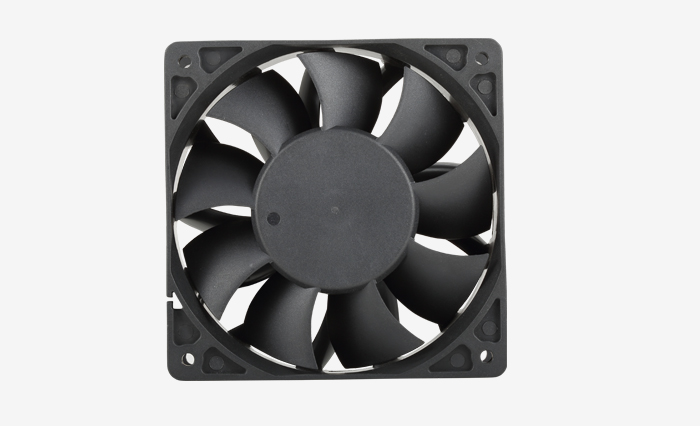

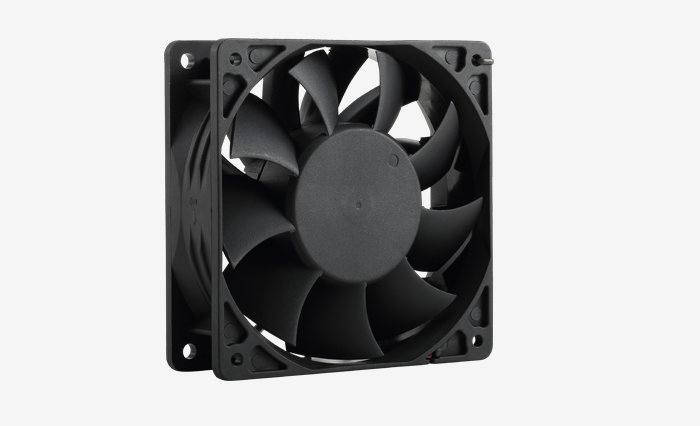

As a direct axial fan factory in China, we provide high efficiency ec motor fan. Size: 120x20x38mm.
1.Other voltage also is realizable 2.Specifications subject to change without notice; 3.Design and provide products according to client’s requirement
